APPLICATION / OPERATION

The "Magna Range" Bridge Plug is a plug specially designed to pass through restricted I.D. tubing and set securely in the larger tubing or casing I.D. below. This performance can save time and money. Because of the extreme setting range, this plug is not pressure rated nor guaranteed although it is designed to withstand differential pressure of 10,000 psi at 350° F. and has been successfully tested to such.

The Magna Range Bridge Plug has opposed, case hardened slips located above and below a three piece nitrile rubber pack-off system. The pack-off elements are contained by rocker action metal back-up rings that eliminate extrusion of the elements at high temperatures.

and pressures. Optional packing systems of "Viton" or "Aflas" are available on special order. A ratchet lock ring retains the setting force applied to the slips and packoff to maintain a constant sealing pressure. The one piece slips are designed to anchor securely, even in P-110 casing. They are specially heat-treated making them hard outside for gripping and softer inside for easier milling.

To assure centered setting of the small diameter plug in large I.D. pipe, special ribbed cones direct the slips to evenly spaced positions against the pipe. Should it be necessary to remove a Magna Range Plug after setting, a milling process is recommended as the plug is constructed of mil d steel and is not considered drillable.

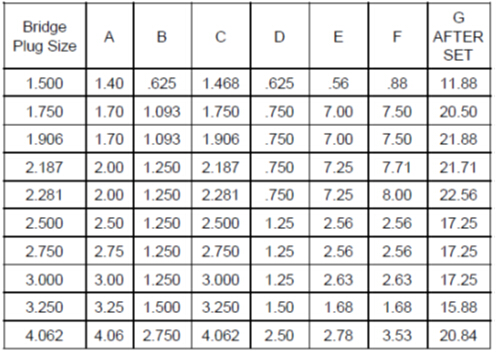

DIMENSIONAL DATA (INCHES)

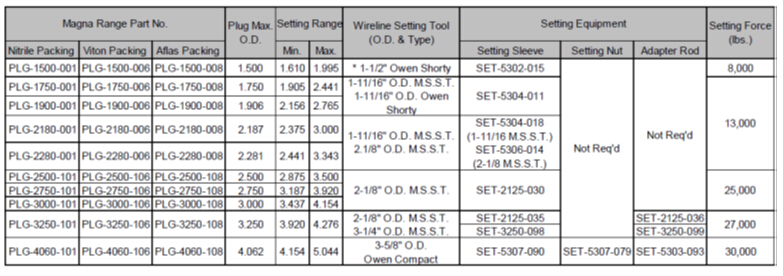

SPECIFICATIONS







* Do not use 1-1/2" O.D. Setting Tool except where indicated above.

Use only the setting tools listed above to set Magna Range Bridge Plugs. When two setting tool sizes are
listed always use the larger O.D. tool whenever possible.

All Magna Range Bridge Plugs should have cement placed on top before further operations are performed
on the well.
